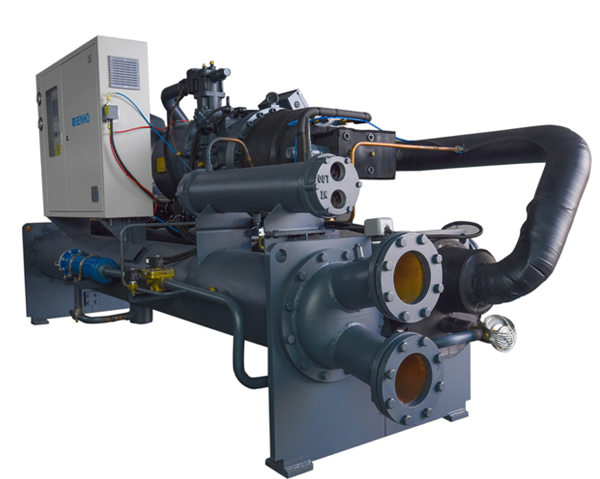

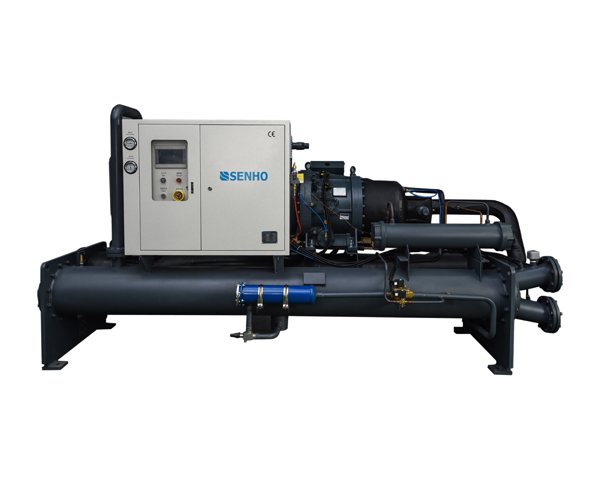

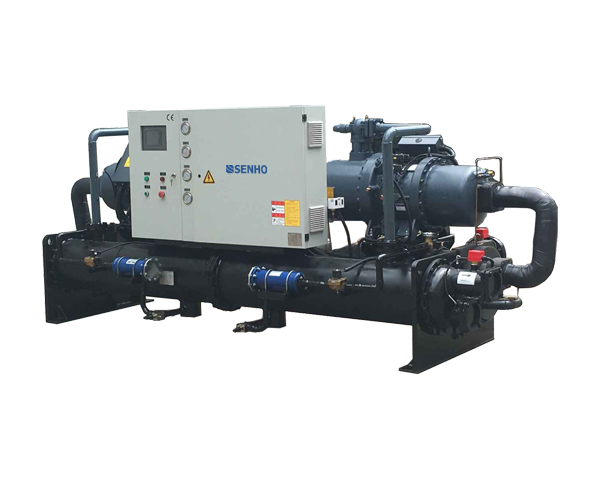

Water Cooled Screw Chillers

Standard Products Available Range of Water Cooled Screw Chillers

· Cooling capacity range: 105KW to 3160KW

· Set temperature range: 5℃ to 30℃

· Temperature controlling vibration: ±1℃

Siemens S7-200 Smart Series Programmable Logic Controller

· Intelligent and comprehensive controlling and monitoring

· PROFINET and RS-485 communication protocol for easy and economical controlling expansion.

10 Inch Touch Screen Operation Panel

· Intuitive operation interface with unit running status at one glance, training-free operation

· Detailed alarm information indicating for fast troubleshooting

Europe Version Schneider Electric Parts

· Higher standard components to realize more stable and longer service life

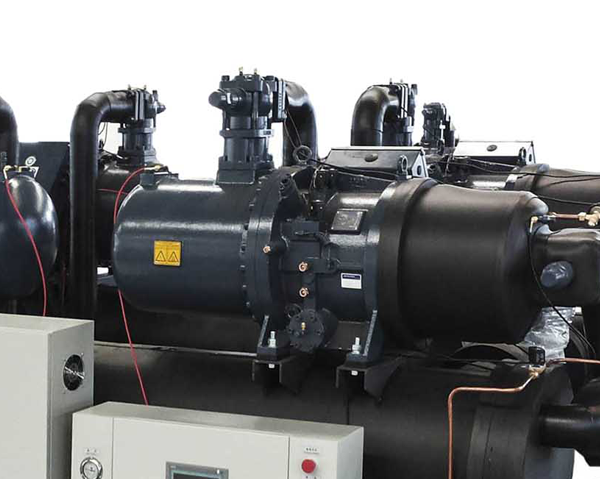

Bitzer or Hanbell Semi-hermetic Screw Type Compressor

· Compressor four-grade capacity control allows smooth start-up and minimizes the impact on the electricity grid

· Close cooperation with compressor manufacturers for decades has enabled us to choose the most stable and suitable compressor models and maximize their efficiency.

Heat Exchanging Parts

· Generously sized and rationally designed shell and tube condenser, ensuring the heat exchanging efficiency and lowering vulnerability to bad water quality

· High-efficiency shell and tube evaporator with high-quality carbon steel and threaded copper tube, better performance, and low possibility of blockage.

Plenty of Configuration Options to Make It More Suitable for Your Process Cooling

· Integrated hydronic module

· Complete stainless steel(food grade and medical grade) water circuit

· Remote control panel

· R134a refrigerant version for ambient temperature up to 60℃

· Heat recovery module for energy reuse

· Low cooling water temperature running proof for low ambient temperature working condition

Product Details of Water-cooled Screw Chillers

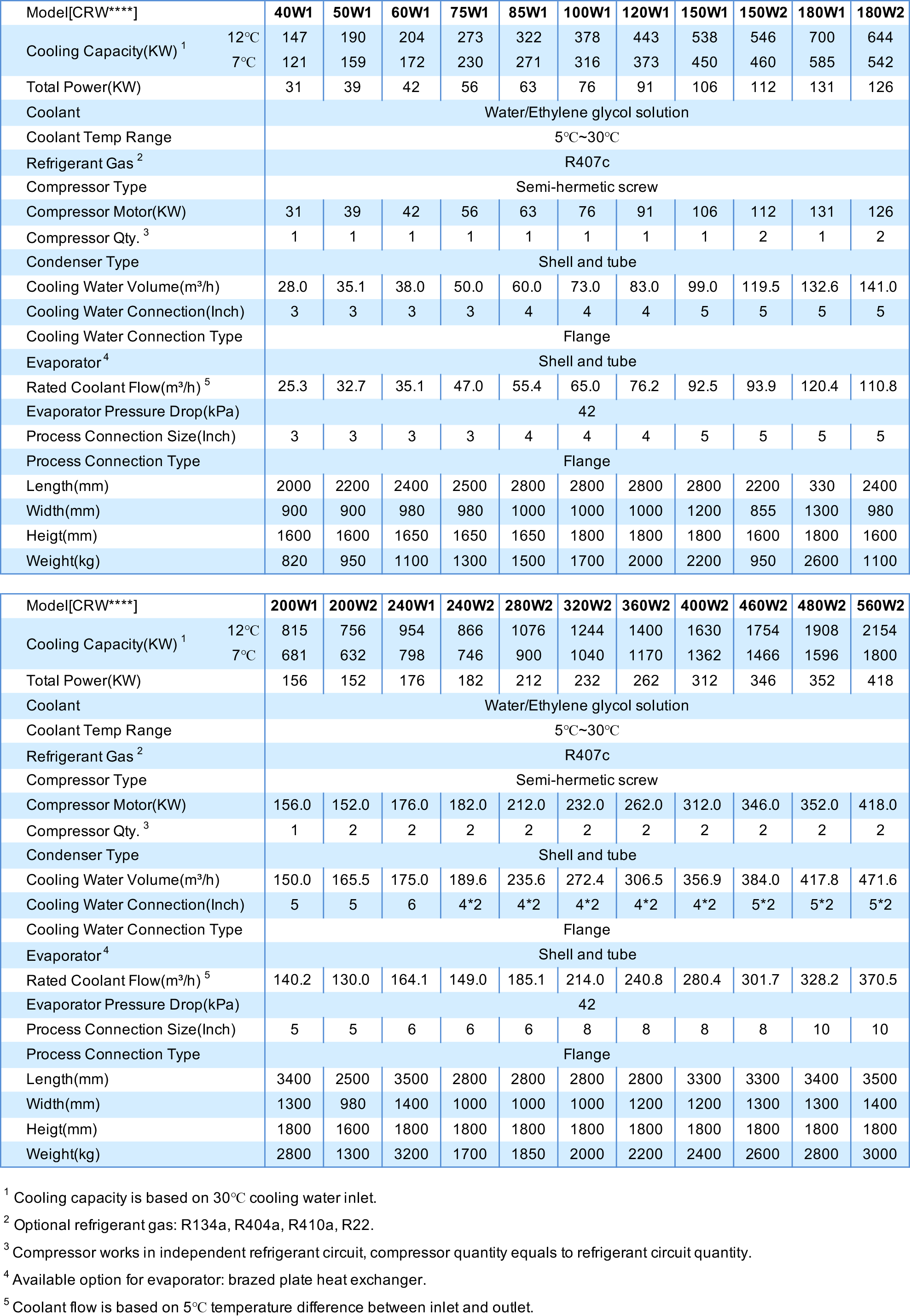

Water Cooled Screw Chiller Specifications
