Water Cooled Industrial Chillers

PRW Series - Scroll Compressor
x
Water Cooled Industrial Chillers
  • Water Cooled Industrial Chillers
  • Water Cooled Industrial Chillers
Water Cooled Industrial ChillersWater Cooled Industrial Chillers

    Senho water-cooled industrial chillers require only a small installation space to ensure stable and reliable operation. Outstanding design and top-level configurations such as Danfoss Compressors and Schneider Electric give superior performance to water-cooled scroll chillers. The reliability of Senho products is also attributable to strict production control and factory quality control procedures.

  • Product Details
  • Technical Specifications
  • Download

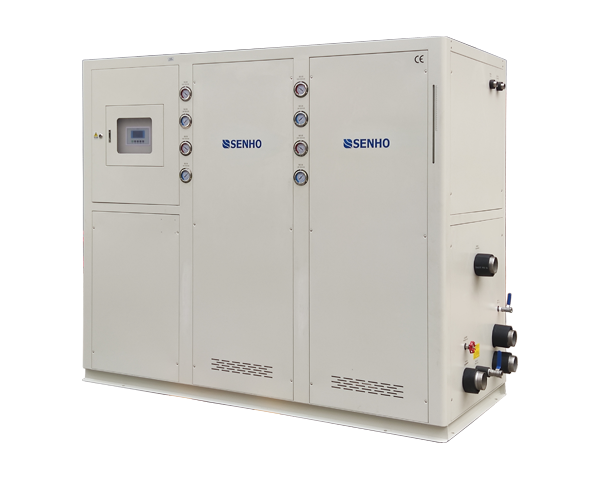

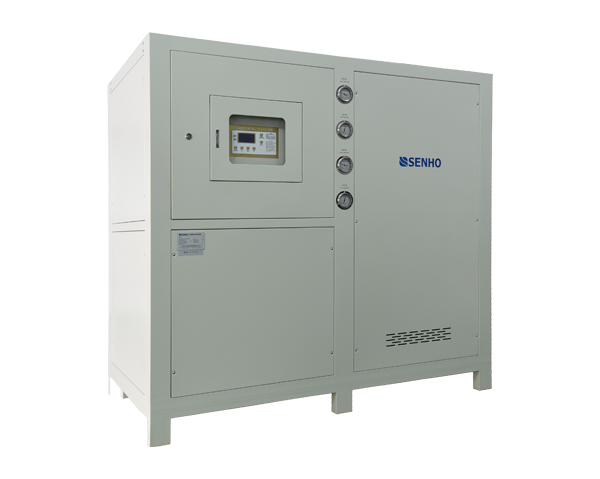

Water Cooled Industrial Chiller - 2 to 60 Ton

General Features

Higher Efficiency and Compact Design

Generously sized shell and tube condenser with ational  tubing structure and careful material sizing, well matched with the fine designed refrigeration system, allowing SENHO water cooled industrial chiller easier maintenance and high efficiency.

Small Foot Print & Less Requirement for Installation Condition

With its small foot print and little demand for installation, SENHO water cooled industrial chillers can be located both indoor and outdoor without influencing performance.

Low Maintenance Cost

Strength being put in the development and research on durability of refrigeration system lead to low failure rate and high customer satisfaction. With only regular checking and maintenance, SENHO water cooled industrial chillers can provide long service life.


Standard Products Available Range

· Cooling capacity range: 9.2KW to 203.8KW

· Set temperature range: 5℃ to 30℃

· Temperature controlling vibration: ±1℃


Smart Microprocessor Controller

· Comprehensive monitoring and precise temperature control, text display and audible alarm for running failure.

· MODBUS and RS-485 communication protocol supported version available.


Europe Version Schneider Electric Parts

· Most reliable comments adopted for critical parts like AC contactor, breaker, and thermal relay.

· Higher standard components to realize a more stable and longer service life.

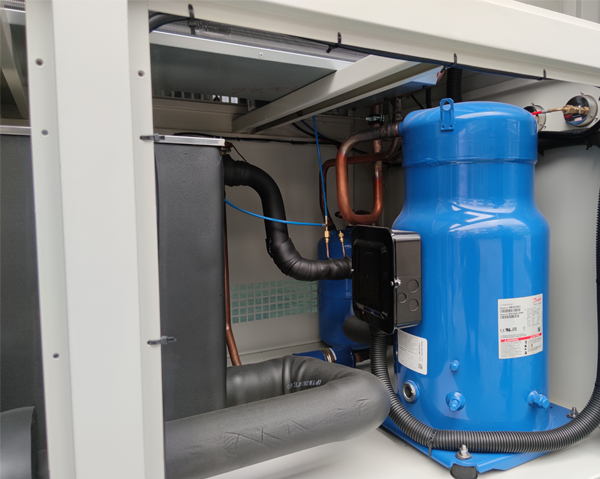

Scroll Compressors

· Danfoss or Copeland hermetic scroll compressors

· Close cooperation with compressor manufacturers for decades has enabled us to maximize their efficiency.


Heat Exchanging Parts

· Generously sized and specially desinged shell and tube condenser, lowering vulnerability to blocking caused by bad water quality

· High quality brazed plate heat exchanger gets higher heat exchanging efficiency.

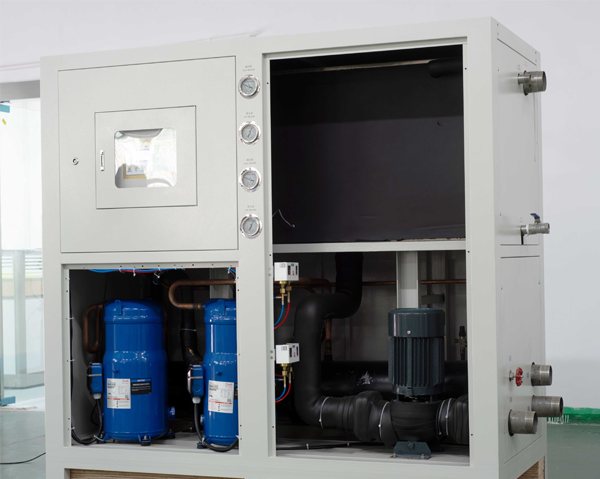

Built-in Hydronic Module

· PRW series water cooled industrial chiller integrates a buffer tank and a large-flow circulation pump for easy installation and use.

· Inlet and outlet water bypass valves are equipped to adjust the water pressure as needed.

· The water tank sight glass allows the water level and water quality to be checked at a glance.



Available Option Configuration for Water-cooled Industrial Chillers

· Closed circuit version to allow the use of an external chilled water reservoir

· Expansion tank for water circuit pressure stablization

· Complete stainless steel(or food grade and medical grade) water circuit

· Dual water circuits version for △t>8K

· Remote control panel

· PLC control system & color touch screen HMI, PROFINET connection supported

· Control accuracy up to ±1k

· Heat recovery module


Product Details


Water Cooled Industrial Chiller - 2 to 60 Ton


Water Cooled Industrial Chiller - 2 to 60 Ton


Water Cooled Industrial Chillers


Water Cooled Industrial Chillers
