Air Cooled Industrial Chillers

PRA Series - Scroll Compressor
Air Cooled Industrial Chillers
  • Air Cooled Industrial Chillers
  • Air Cooled Industrial Chillers
Air Cooled Industrial ChillersAir Cooled Industrial Chillers

    SENHO air cooled industrial chillers feature high energy efficiency and low noise. In addition to top-level configurations, the superior quality of Senho products is attributed to excellent structural design and strict production and quality control processes. The complete product range, reliable product quality, and top-level refrigeration solution capabilities enable SENHO air-cooled industrial chillers to serve a growing number of industries and customers.

  • Product Details
  • Technical Specifications
  • Download

Air Cooled Industrial Chillers - 1 to 40 Ton

General Features

Higher Energy Efficiency in Smaller Size

Condenser with specially designed tubing structure and careful material sizing of the aluminum fin, well-matched with the rational refrigeration system, is the key that SENHO air-cooled industrial chillers have high efficiency and compact size at the same time.

Easy Installation

Without the demand for cooling towers, the installation of air-cooled chillers requires only power sources and pipe connections to process.

Low Maintenance Cost

Strength being put in the development and research on the durability of the refrigeration system lead to a low failure rate and high customer satisfaction. With only regular checking and maintenance, SENHO air-cooled industrial chillers can provide long service life.

High Flexibility and Wide Application Range

With the available option for working ambient temperature low to -25℃ and high to 60℃, coolant temperature range from -30℃ to 30℃, ±0.1℃controlling accuracy, SENHO air-cooled industrial chillers are widely used in different industries.

Standard Products Available Range

· Cooling capacity range: 2KW to 184.8KW

· Set temperature range: 5℃ to 30℃

· Temperature controlling vibration: ±1℃

Smart Microprocessor Controller

· Comprehensive monitoring and precise temperature control, text display and audible alarm for running failure.

· MODBUS and RS-485 communication protocol supported version available.

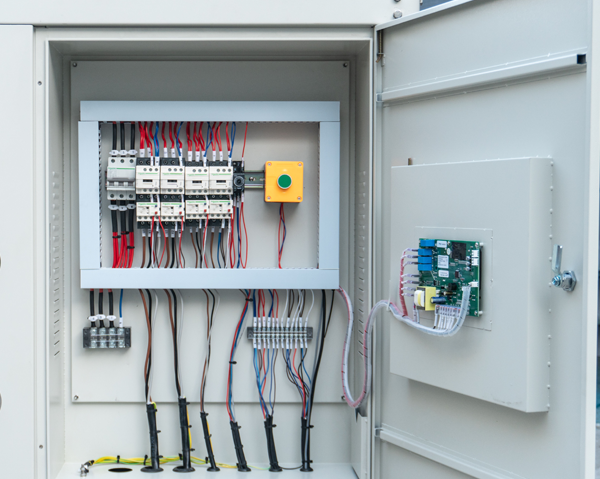

Europe Version Schneider Electric Parts

· Most reliable comments adopted for critical parts like AC contactor, breaker, and thermal relay.

· Higher standard components to realize a more stable and longer service life.

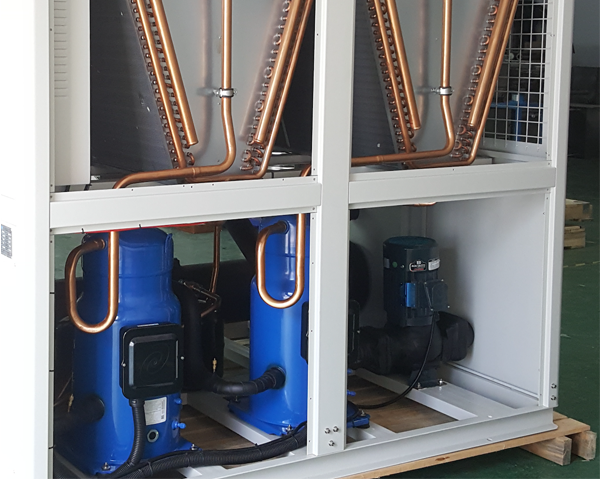

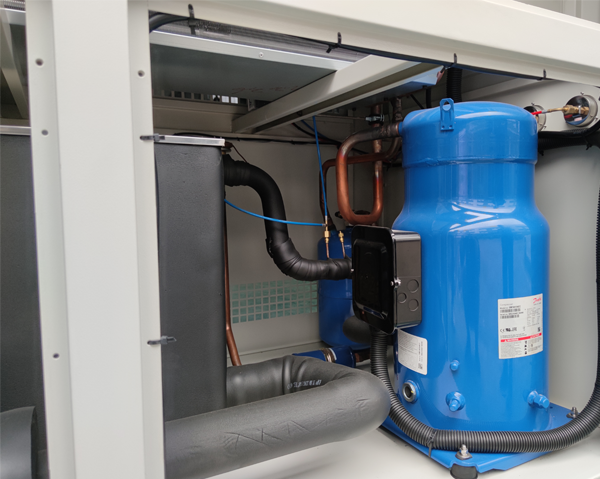

Scroll Compressors

· Danfoss or Copeland hermetic scroll compressors

· Close cooperation with compressor manufacturers for decades has enabled us to maximize their efficiency.

Heat Exchanging Parts

· Generously sized aluminum fin condenser with epoxy resin coating, lowering vulnerability to ambient corrosion

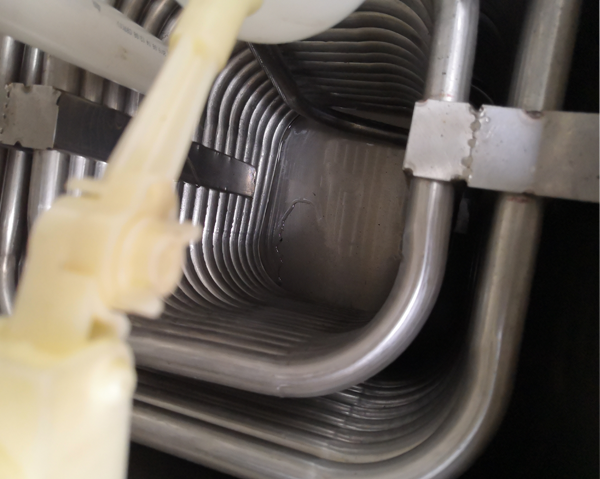

· SUS304 immersion coil evaporator, which can only be seen in high-class configuration, is in our standard design. It provides stability and convenience of cleaning unmatched by other type of evaporator.

Built-in Hydronic Module

· The unit integrates a buffer tank and a large-flow circulation pump for easy installation and use.

· Inlet and outlet water bypass valves are equipped to adjust the water pressure as needed.

· The water tank sight glass allows the water level and water quality to be checked at a glance.

Available Option Configuration for Air-cooled Industrial Chillers

· Closed circuit version to allow the use of an external chilled water reservoir

· Expansion tank for water circuit pressure stablization

· Complete stainless steel(or food grade and medical grade) water circuit

· Dual water circuits version for △t>8K

· Remote control panel

· PLC control system & color touch screen HMI, PROFINET connection supported

· Control accuracy up to ±1k

· R134a refrigerant version for ambient temperature up to 60℃

· Heat recovery module

Product Details

Air Cooled Industrial Chillers - 1 to 40 Ton

 Air Cooled Industrial Chillers - 1 to 40 Ton

Air Cooled Industrial Chillers - 1 to 40 Ton

 Air Cooled Industrial Chillers - 1 to 40 Ton

Ask A Question
  • index
Water Cooling System

Frequently Asked Questions

The specially designed condenser in SENHO air-cooled industrial chillers plays an important role in enhancing energy efficiency. With its carefully engineered tubing structure and optimized aluminum fin material sizing, it ensures efficient heat transfer and heat dissipation. This design enables the chillers to achieve high performance and compact size, resulting in improved energy efficiency for our air-cooled industrial chillers.

SENHO air-cooled industrial chillers are equipped with advanced control systems and user-friendly interfaces. Our chillers support various control options, including PLC control systems, color touchscreen HMIs, and a PROFINET connection. These features provide data-driven temperature control, real-time monitoring, and convenient operation for our air-cooled industrial chillers, ensuring optimal performance and user satisfaction.

SENHO air-cooled industrial chillers provide high flexibility in terms of working ambient temperature and coolant temperature range. With options available for working ambient temperature as low as -25℃ and as high as 60℃, and a coolant temperature range from -30℃ to 30℃, our chillers can adapt to a wide range of operating conditions, making them suitable for various industries and applications.
